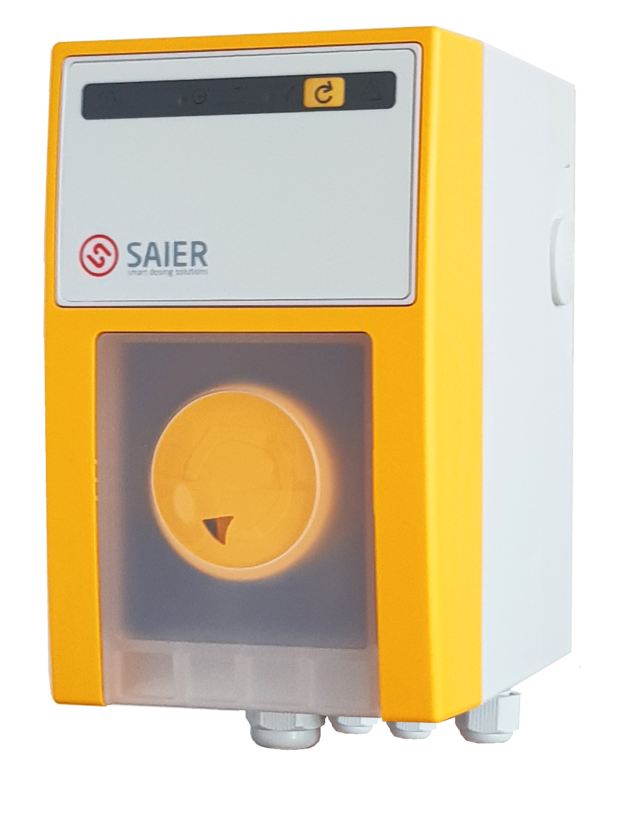

Concept 2115
The Concept 2115 dosing hose pumps deliver precise and reliable dosing of liquid detergent for
dishwashing and laundry systems.
Their solid construction and high-quality components guarantee safe operation, even under demanding
conditions.
| Conveying capacity | 1.5 ... 500 ml/min |
|---|---|
| Duty cycle | 40 % |
| Max. pressure | 0.5 bar |
| Suction height | 1.8 m |
| Operating voltage | 230 ... VAC |
|---|---|
| Frequency | 50 / 60 Hz |
| Power consumption | 16 VA |
| Hose rupture detection | nein |
| Degree of protection | IP 65 |
| Control input voltage | ... VAC |
| External warning signal | nein |
| Saier RS485 Bus | nein |
