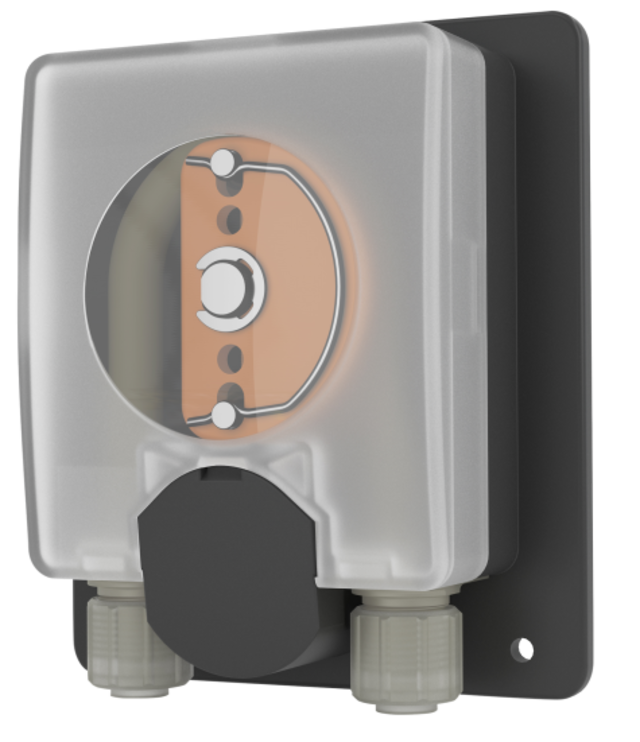

DSP1501
With the motor located between the hose connection nozzles, the installation depth of this pump is greatly reduced. The pump can be easily integrated as a variant
with an installation frame. The pump has speed control and the dosing rate can be parameterized at the factory.
| Conveying capacity | 120 ml/min |
|---|---|
| Duty cycle | 50 % |
| Hose rupture detection | nein |
| Max. pressure | 1.5 bar |
| Suction height | 1.8 m |
| Control | ON/OFF |
| Operating voltage | 24 VDC |
|---|---|
| Frequency | nein |
| Power consumption | 4.8 VA |
| Degree of protection | IP 65 |
